Chenguan can provide the solutions of the whole IQF processing line of shrimp. The line generally includes shelling, washing, grading, cooking, cooling, IQF freezing, glazing and hardening. All the machines are made of stainless steel 304 completely. Except shelling needs to be done by manual work, other steps are processed by the related machines or equipments. We can provide individual equipments of this processing line based on special demand, as well as build the processing plant as a turnkey project. This processing plant is also available for IQF processing of other small seafoods.

Species of Processed Shrimp

Black Tiger (Penaeus monodon)
White Vannamei (Penaeus vannamei)
Sea White (Penaeus indicus)
Flower (Penaeus semisulcatus)
Black Pink (Penaeus monoceros)

It also can processes:
Squid Rings, Cuttlefish Slice and other small pieces of seafoods

Processing Steps And Equipments

Equipment	Application

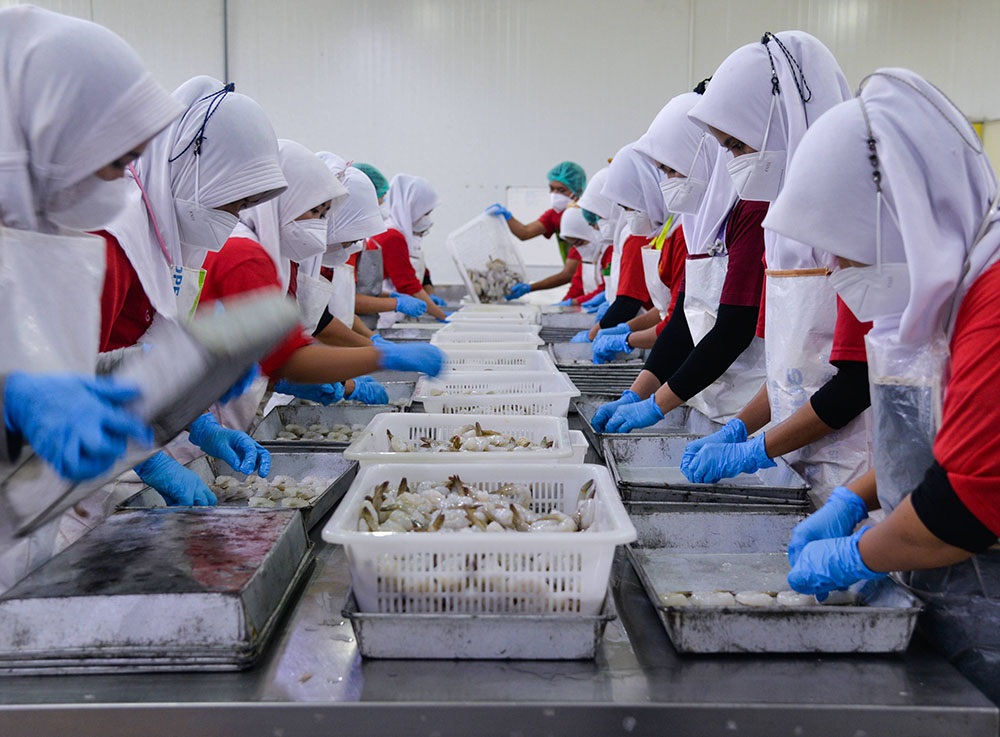

Shelling Table	Shell shrimps by manual

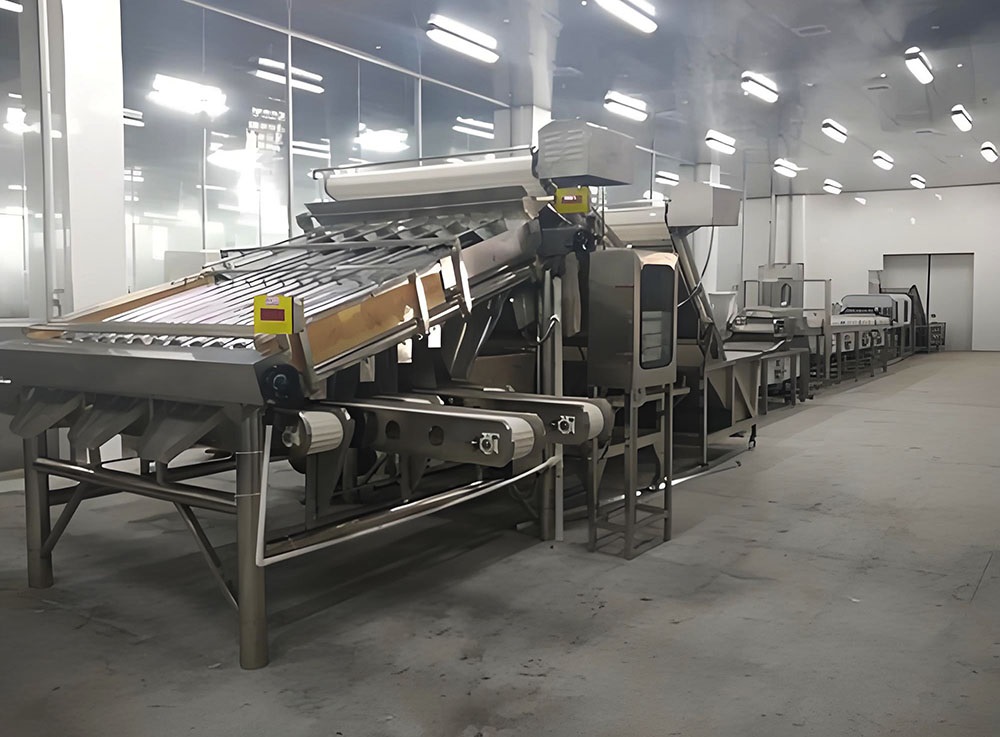

Grading Machine	Grade shrimp into different sizes
Washing Machine	Clean out shrimp
Steam Cooker	Cook and sterilize shrimp
Normal and Ice Water Cooler	Clean and cool the cooked shrimp
Vibration Shaker	Remove the water stick on the surface of the articles
Bulk Feeder	Spread shrimps evenly when being fed into the IQF freezer
Spiral or Tunnel Freezer	Freeze the shrimp instantly
Glazer	Glaze ice in the surface of shrimp
Hardening Machine	Harden the ice glazed in shrimp

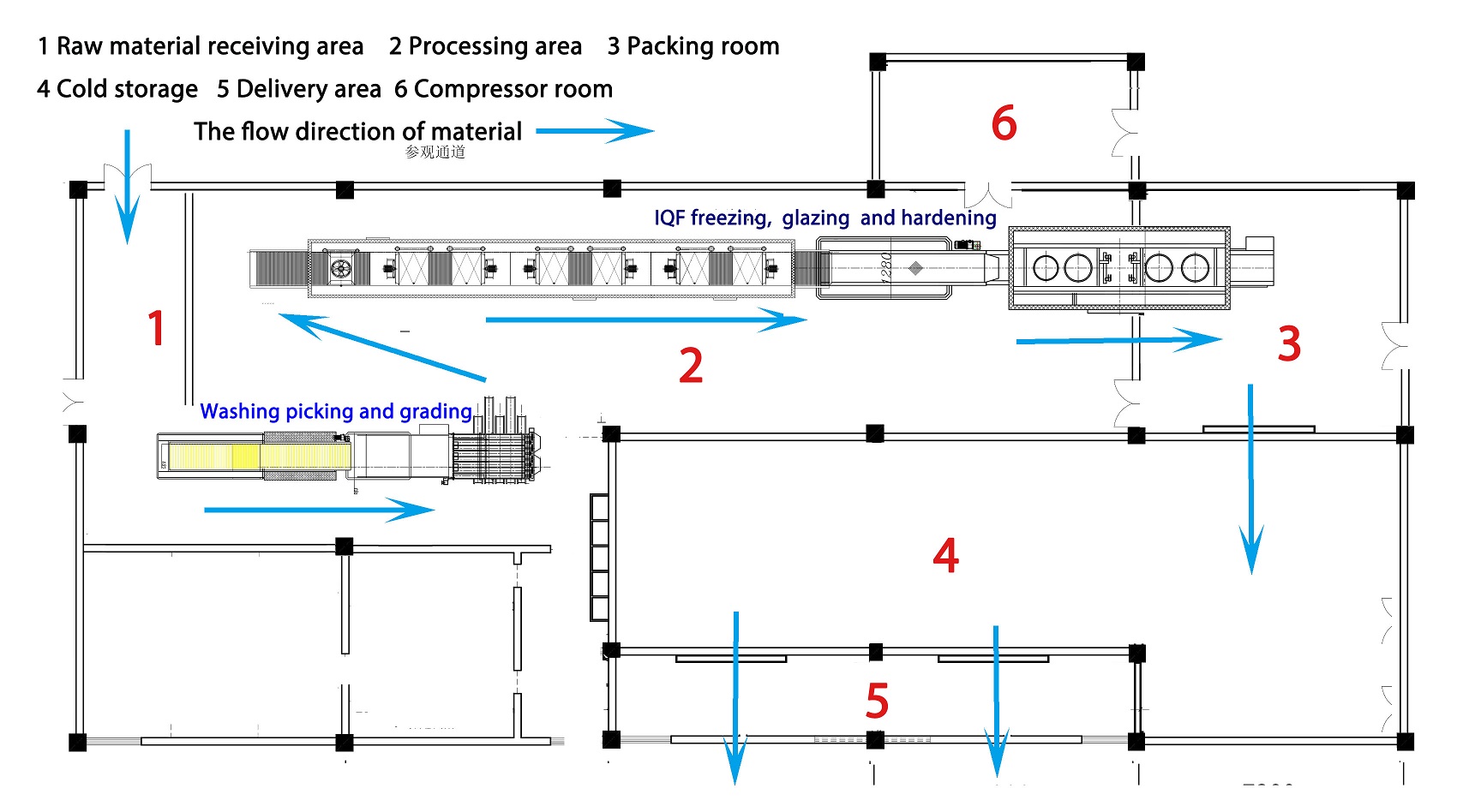

Example of Plant Layout
