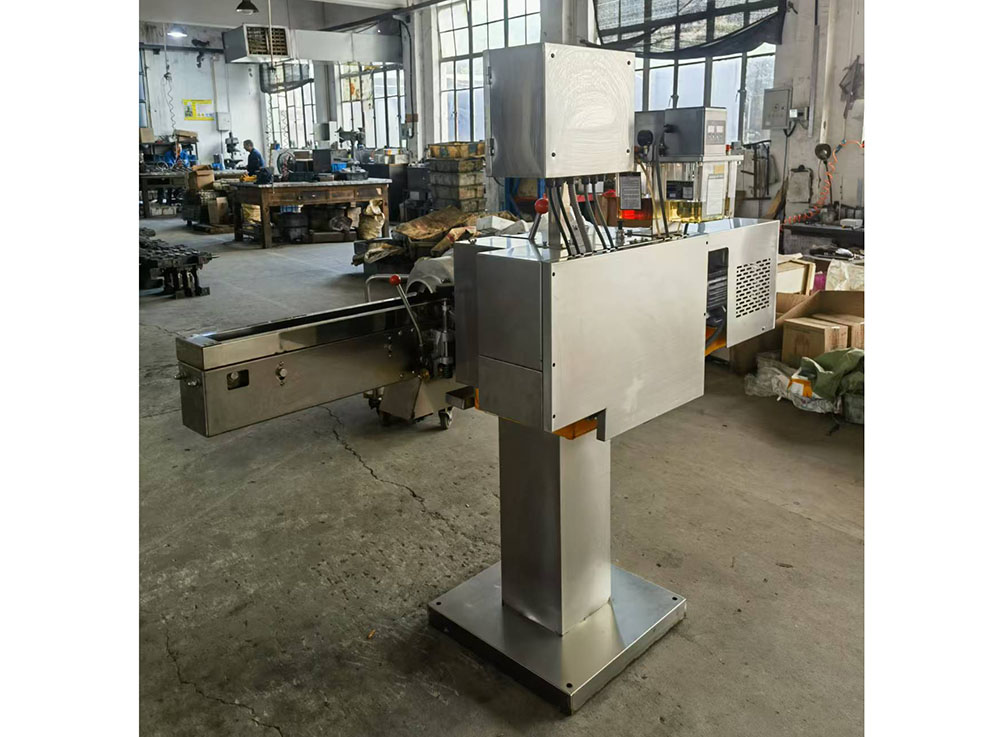

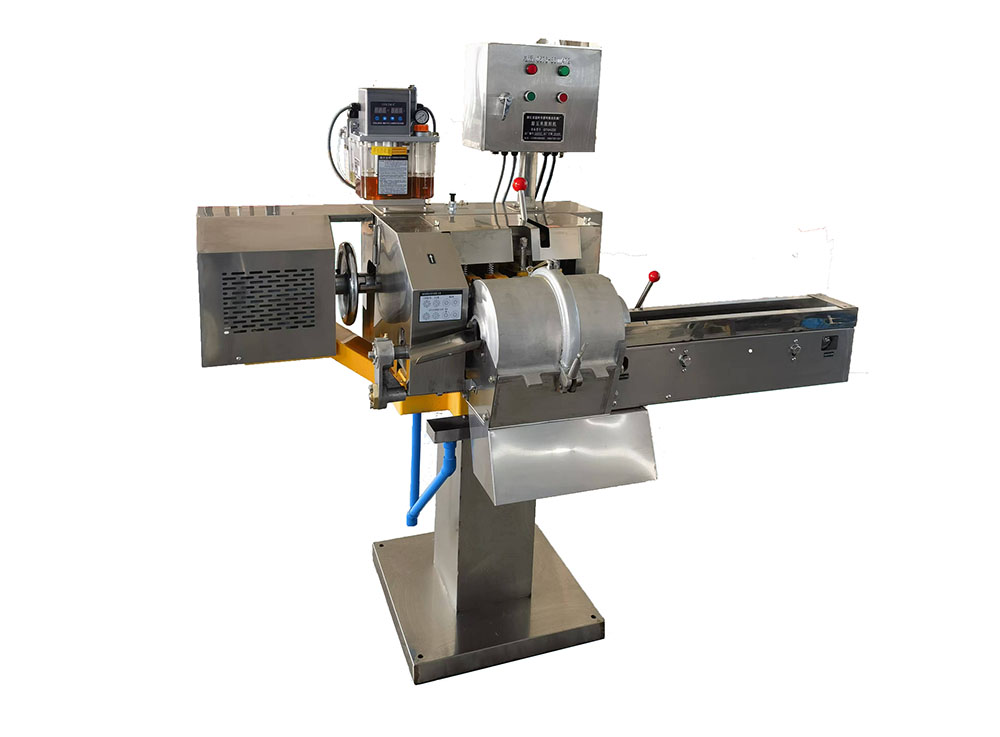

Fresh Corn Cutter Machine

Chenguan corn cutter machine is different from common corn cutting machine. It is for the purpose of fresh corn niblet which water content is more than 80%. The fresh corn is not allowed to cut by a simple and crude way. So the simple corn cutting machine is not suitable. The fresh corn cutter is a efficient equipment for corn niblet cutting. Generally used for making the material of granular and paste corn can, frozen maize and other corn foods. It has the function of directional and fixed distance conveying, Cutting knife and scraper are controlled automatically, separate corn granule and waste from cob by themselves. It also has mores features, such as compact configuration, rational design, easy and safe operation, high efficiency. It is one of the best machines for corn shelling. Present model was improved in 2018.

Running Principle

Freesh corns are put on the conveying chains one by one by straight line, pass the high speed rotating cutting blades. The corn cutter removes the corn niblet from cob in radial direction. The residual juice and gain are scraped off by the high speed rotating scraping blades.

Performance Data

Maximum processing capacity:1.5 ton/hour equal to 100 corns/min
Cutting rate: 95%
Suited corn size: Corn diameter Φ30—Φ70mm, Length≥90mm
Rotation speed:830 r/min
Conveying chain speed:407mm/s
Rubber feeding roller speed:541mm/s
Belt-claw feeding roller speed:737mm/s

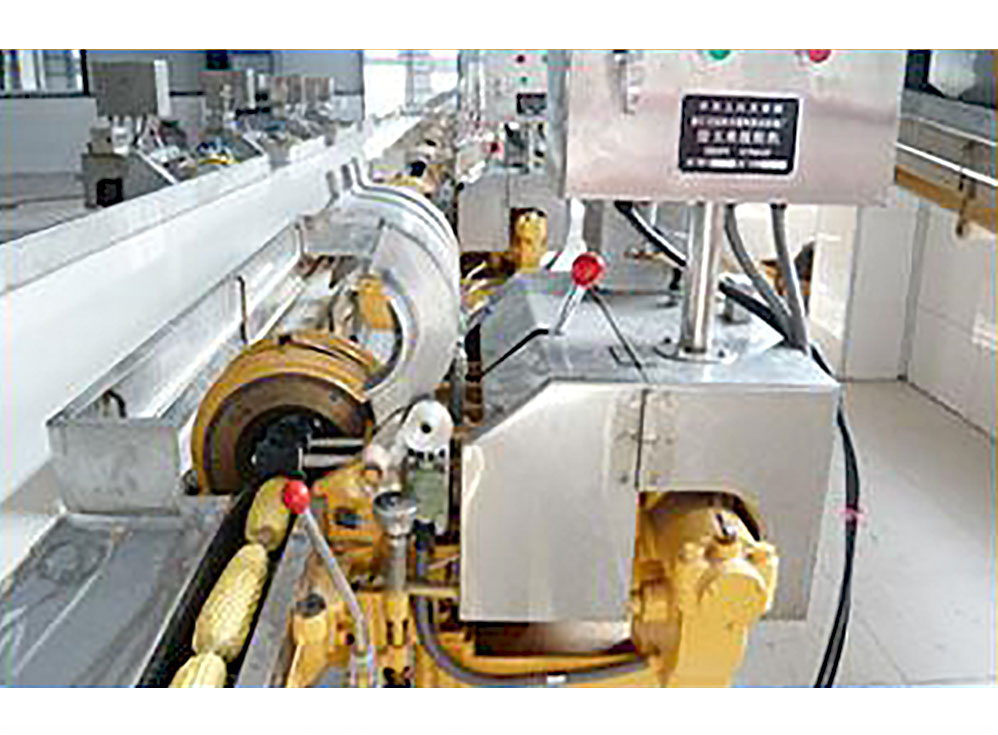

The Corn cutting machine in Running

corn cutting machine
